Introduction

To receive the SpO2 values from the ergometer to be displayed and recorded at the training place some settings must be made at various points in custo diagnostic.


Set Up

Basic Ergometer


set the "SpO2" Setting for the ergometer

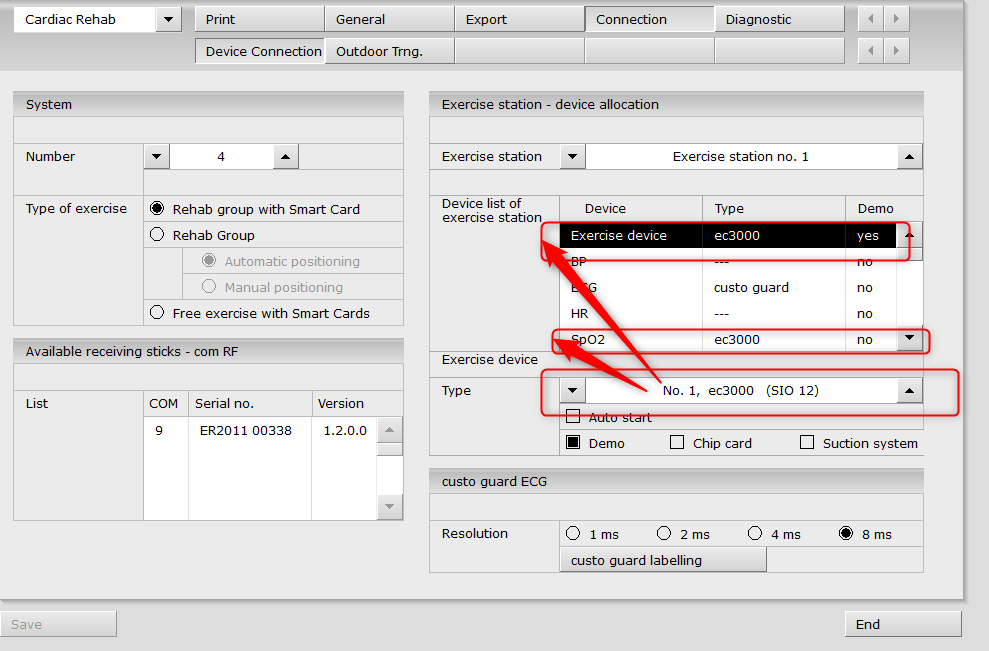

Training place configuration


SpO2 and Device from the training place need the same ergometer


Check the setting in the Service center

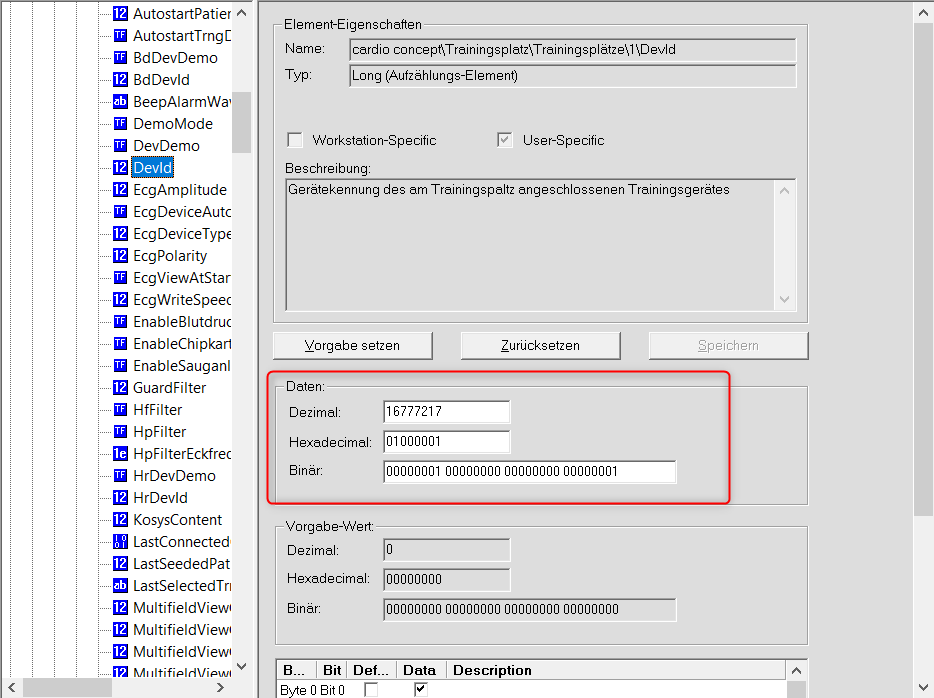

cardio concept\Trainingsplatz\Trainingsplätze\1\DevId

and

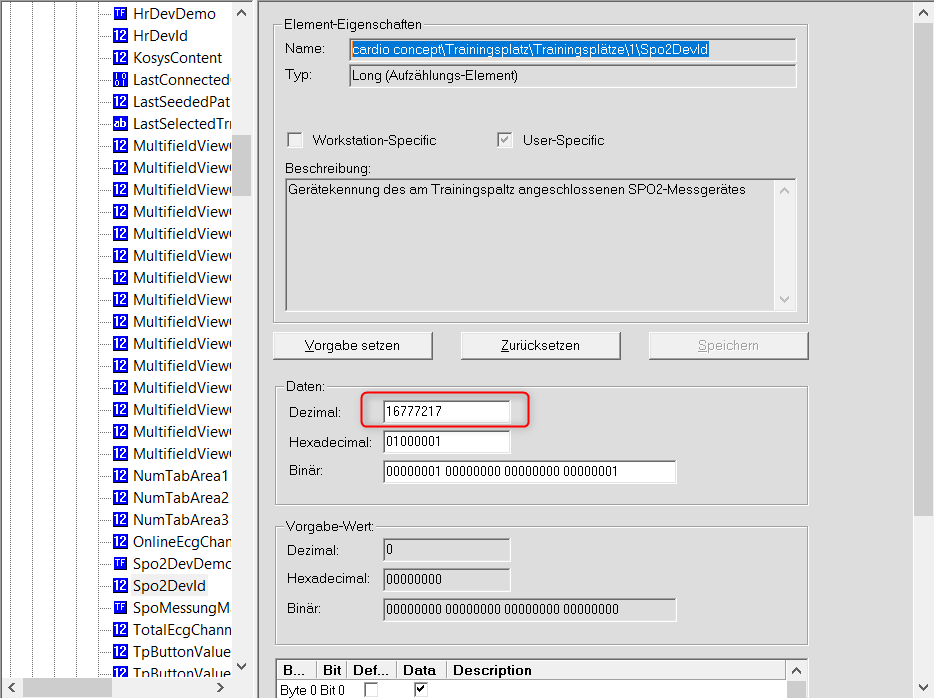

cardio concept\Trainingsplatz\Trainingsplätze\1\Spo2DevId

need the same setting.

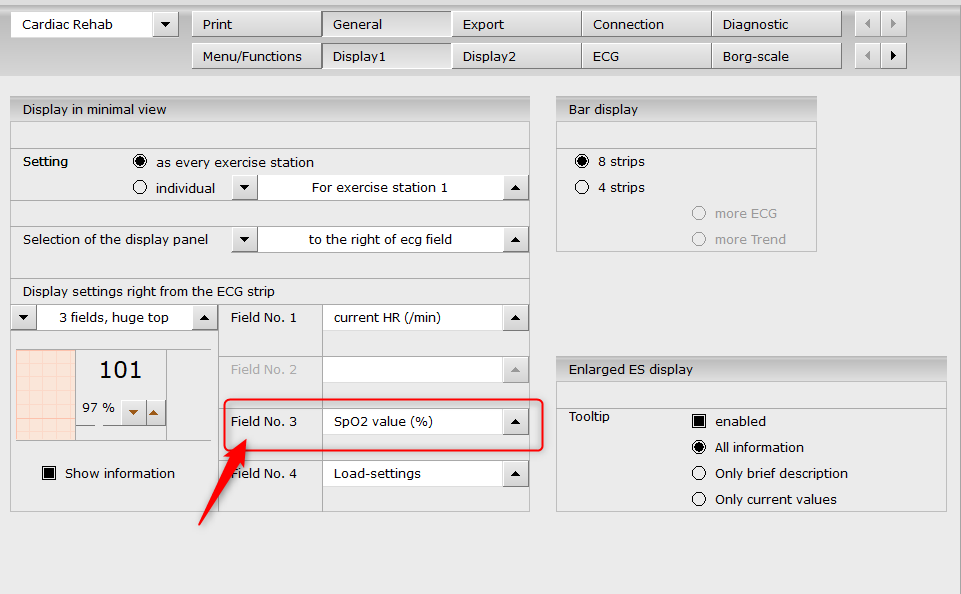

Set the value for the view during the training
