Introduction

The article describes the configuration for a external blood pressure measuring.
This configuration is available since custo diagnostic Version 4.5.2.

Functional description

For an exercise station, a external blood pressure measuring device incl. triggering can be activated for measuring blood pressure. The trigger signal originates from guard. The system supports guard 3 and guard 1.

The blood pressure measuring can be activated in during the Training by the Trainings Profile or in the site "single view" Trainingsplace and than click "Extra BP" over "Options"

Configuration:

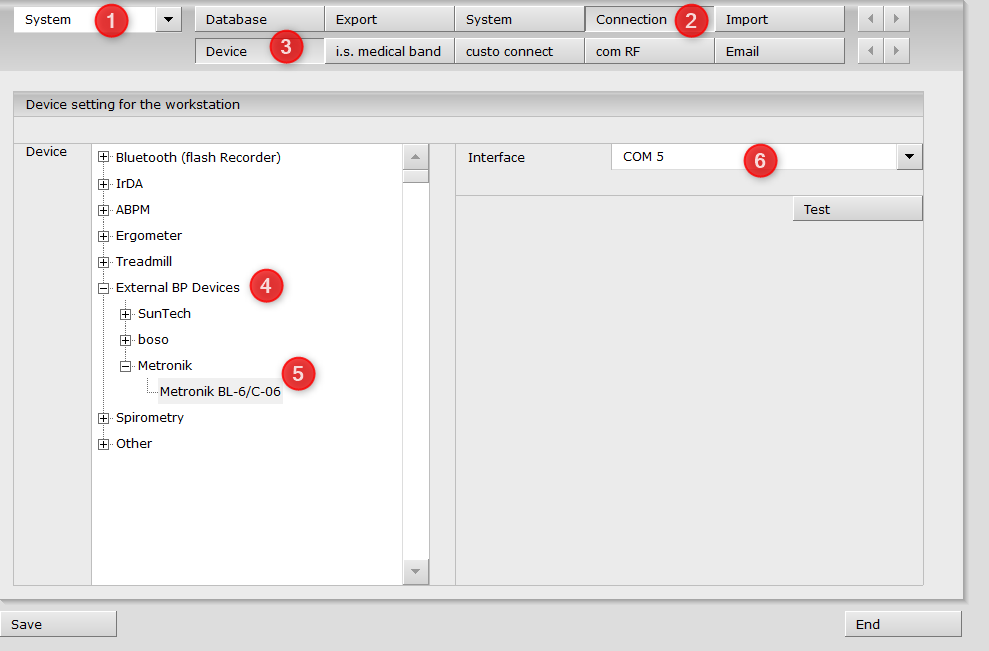

for example by device Metronik

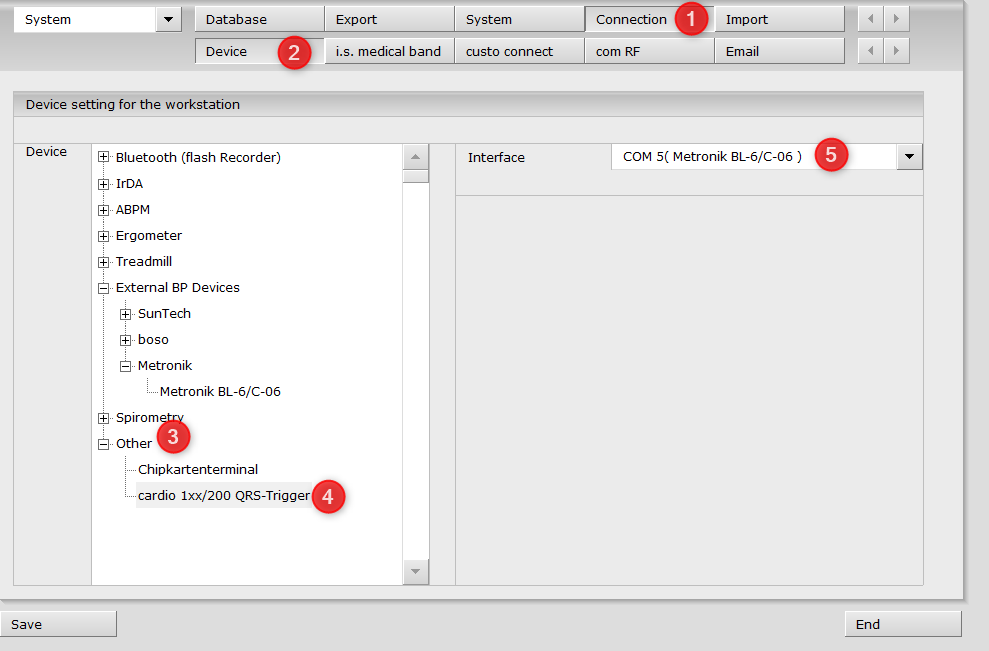

Configuration the comPort for the Trigger Signal:

Configuration the device of the Trainingsplace:

Servicecenter:

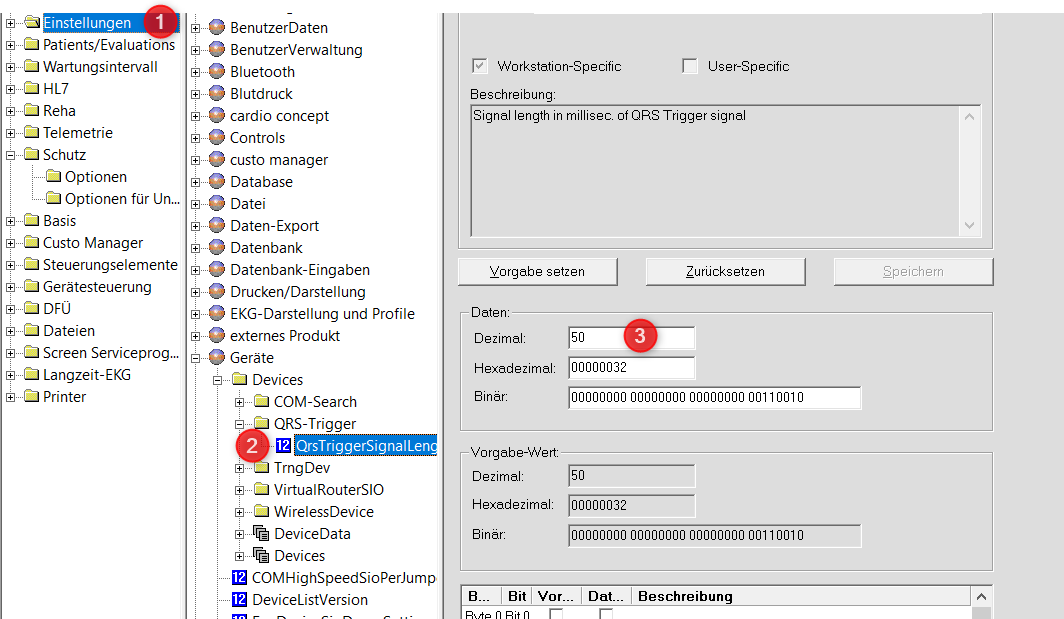

In the service center, the length of the trigger signal can be set additionally under "CSC->Geräte\Devices\QRS-Trigger\QrsTriggerSignalLength. The presetting is 50ms.
