In this article you can find the differences are between custo guard base 1 (10123), custo guard base 6 (10124), the custo charger single (10103) and the custo charger multi (10107).
This devices will be used to charge, prepare to run, download data and to do firmware updates of custo guard holter, custo guard 1 and custo guard 3.


Set Article according price list consisting of
10126 - custo guard base 1
  • 10123 - custo guard base 1
  • 16021 - micro USB cable
10125 - custo guard base 6
  • 10124 - custo guard base 6
  • 16042 - USB-C cable
  • 16041 - mini USB cable
  • 12223 - USB universal mains adapter
10116 - custo charger single
  • 10103 - custo charger single
  • 10110 - USB power supply international
10117 - custo charger multi
  • 10107 - custo charger multi
  • 10110 - USB power supply international



10123
custo guard base 1

10124
custo guard base 6

10103
custo charger single

10107
custo charger multi

10251 - custo guard holter
  • Charging
  • Start
  • Read-in
  • Firmware Update
  • Charging
  • Start
  • Read-in
  • Firmware Update
  • Charging
  • Charging

10102 - custo guard 1 up to serial number:

EF 04609

  • Charging
  • Charging
  • Charging
  • Firmware Update
  • Charging

10302 - custo guard 3 up to serial number:

EG 03650

  • Charging
  • Charging
  • Charging
  • Firmware Update
  • Charging

10102 - custo guard 1 from to serial number:

EF 04609

  • Charging
  • Firmware Update
  • Charging
  • Firmware Update
  • Charging
  • Charging

10302 - custo guard 3 from to serial number:

EG 03650

  • Charging
  • Firmware Update
  • Charging
  • Firmware Update
  • Charging
  • Charging


External characteristics of the devices

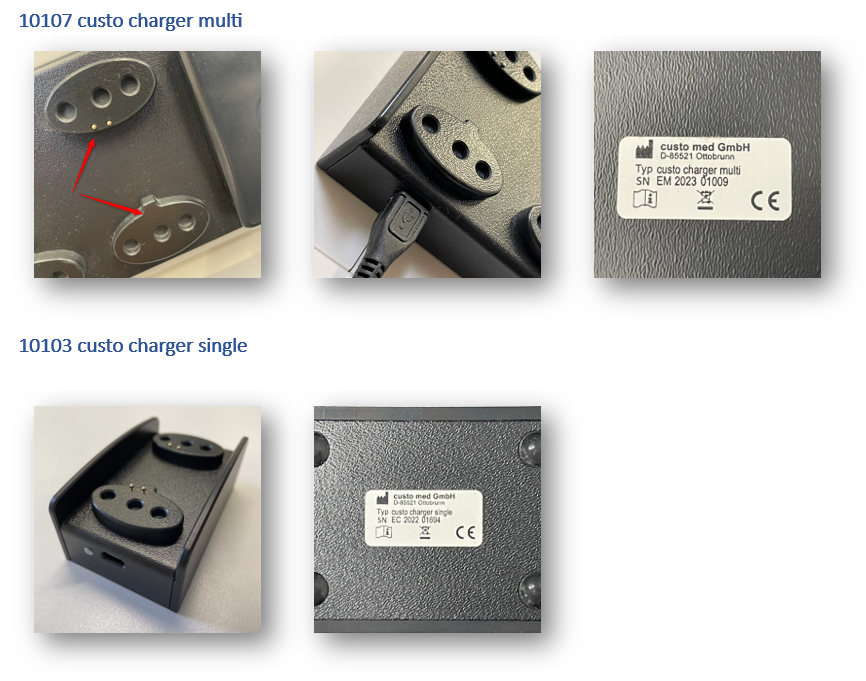

The custo charger multi (10107) has only a connector for charging, it has a micro USB connector and the label on the back of the devices shows the type name: custo charger multi.

The custo charger single can, optical, only identified by the serial number plate at the back of the device. The device can be connect to a PC or charger with a micro USB cable.

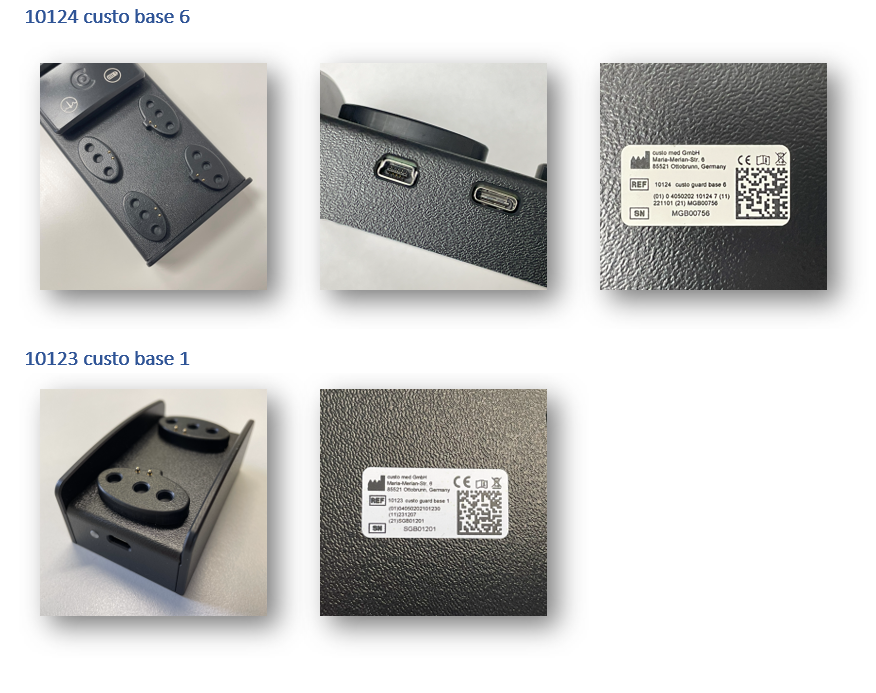

The custo guard base 6 (10124) has charging and data contacts on the side where the guard holter is placed.  It has a Mini USB input and a USB-C connector.

The serial number plate, on the back side of the device, shows the article number.

The custo guard base 1 (10123) can fiscally only be recognized on the serial number plate on the back of the device.  The device can be connect to a PC with a micro USB cable.

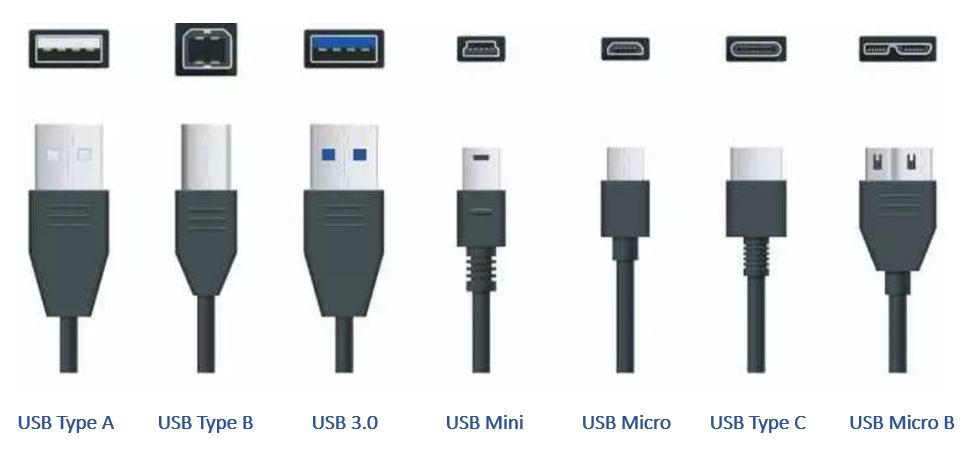

The following USB connectors are available in the market


  • No labels
