Settings:

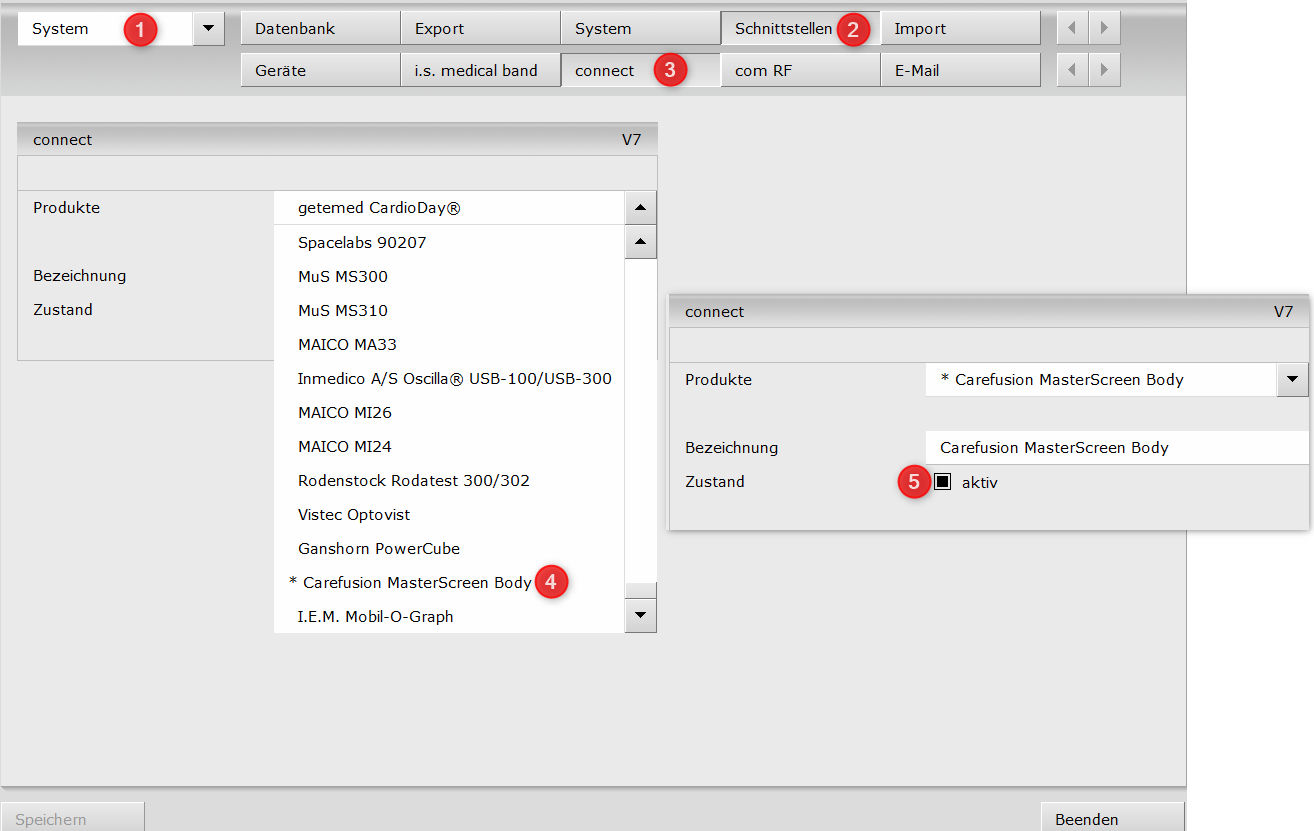

Start custo diagnostic an available the connect product Nr. 4 and "ennable" Nr. 5 and Close custo diagnostic

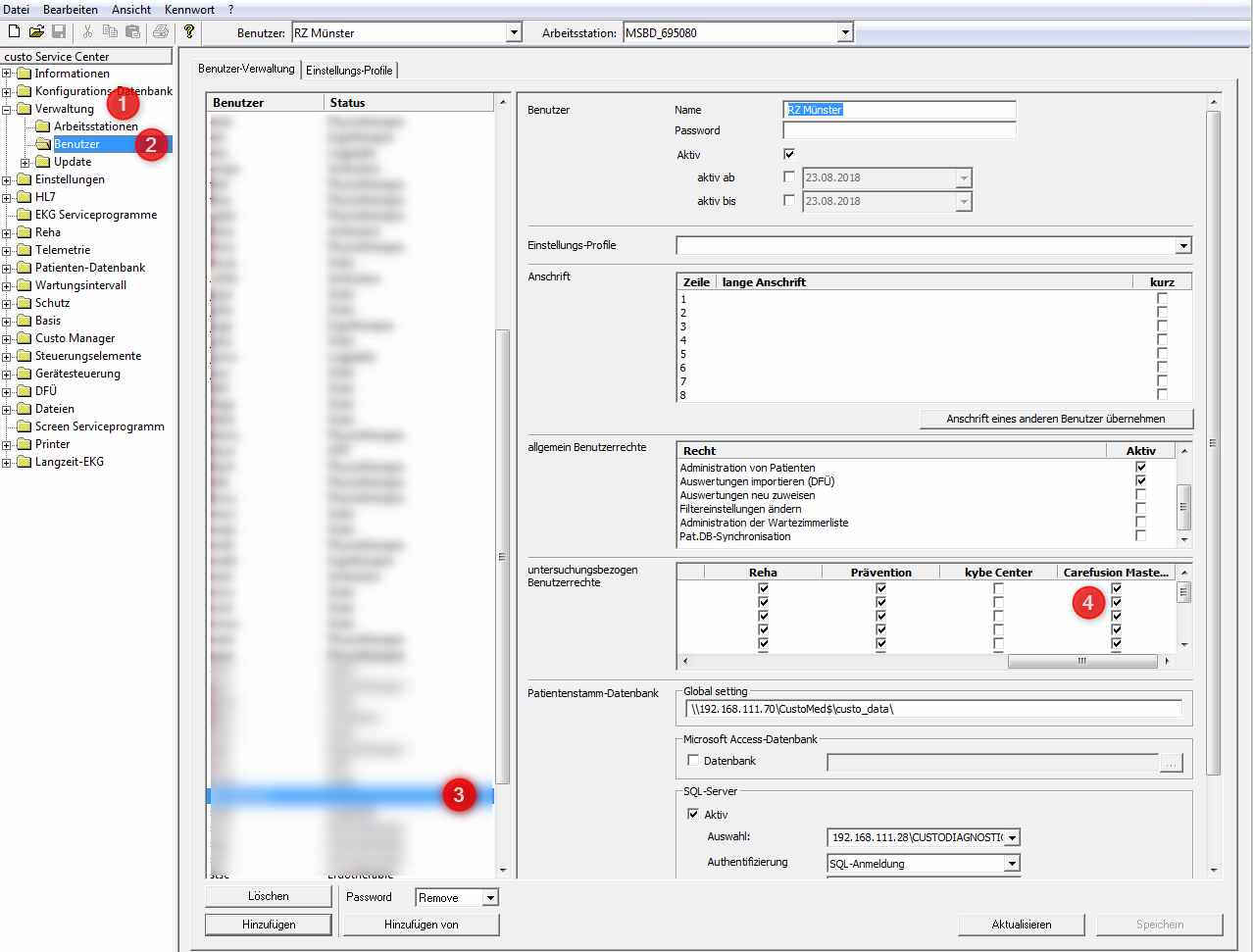

Start the Servicecenter, available the user (3) and activate the User rights (3) for this Project:
Start custo diagnostic and set the Project Settings

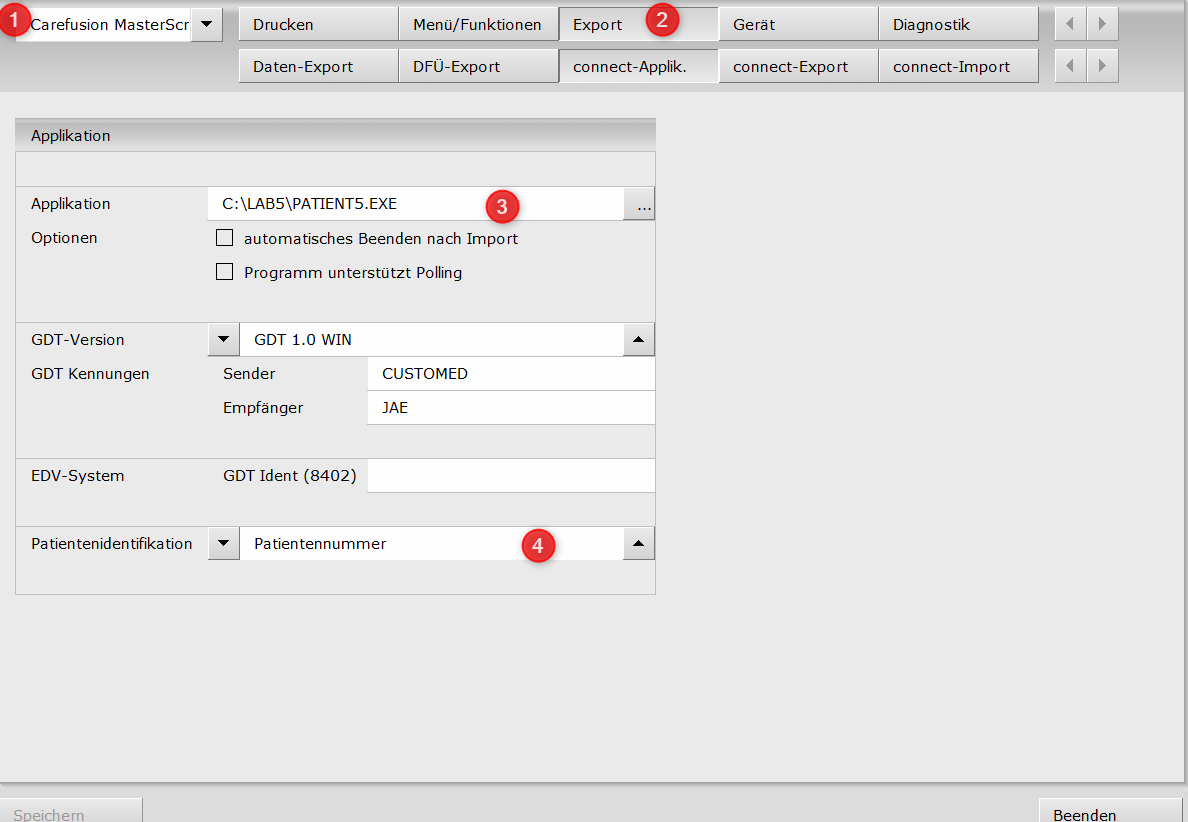

Connect- Applik.
(3) Programmfile from connect Product (4) Patientnumber (for example)
Attention for clinical Configurations with HL7 Configuration:
the best way for the Patient identification is (3) "custo diagnostic DB Number" because the Visit ID can change

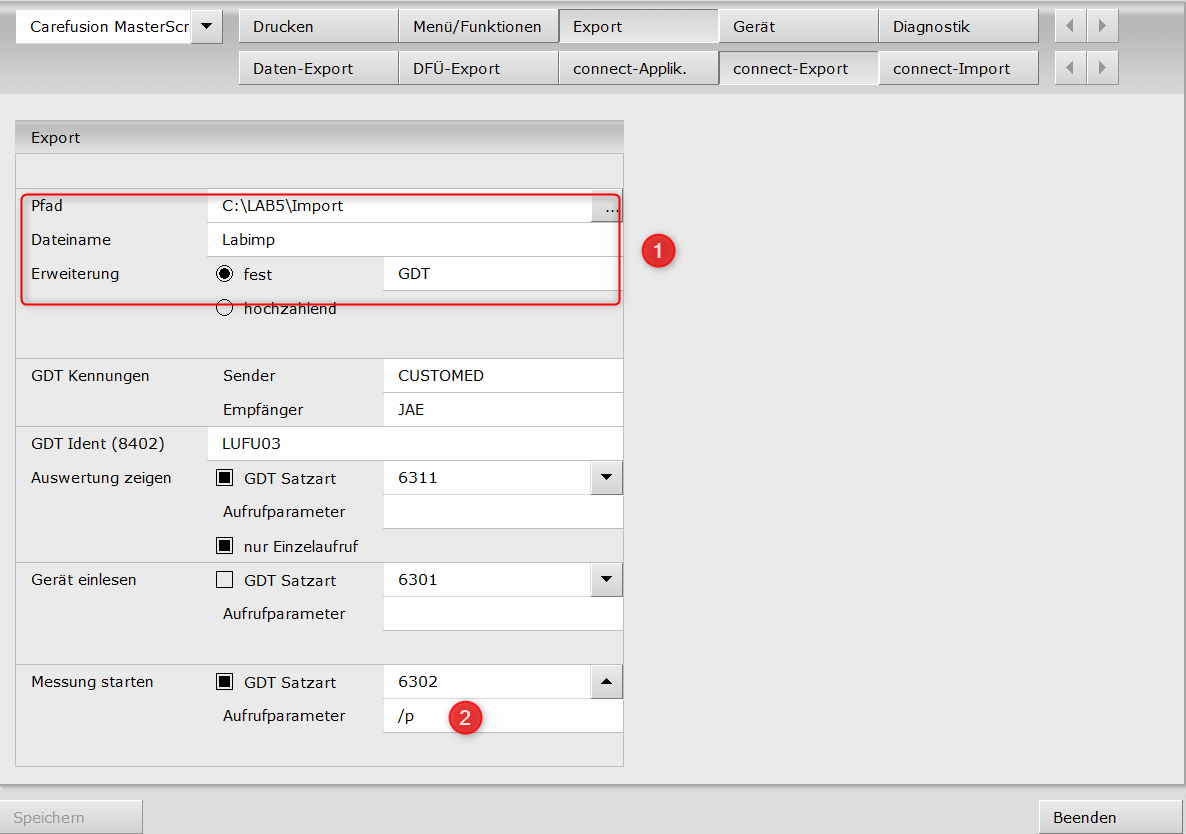

connect-Export, Setting for start the Carefusion, (1) Name, Path and Extension for example and (2) Parameter for start the Patientemodul in Carefusion

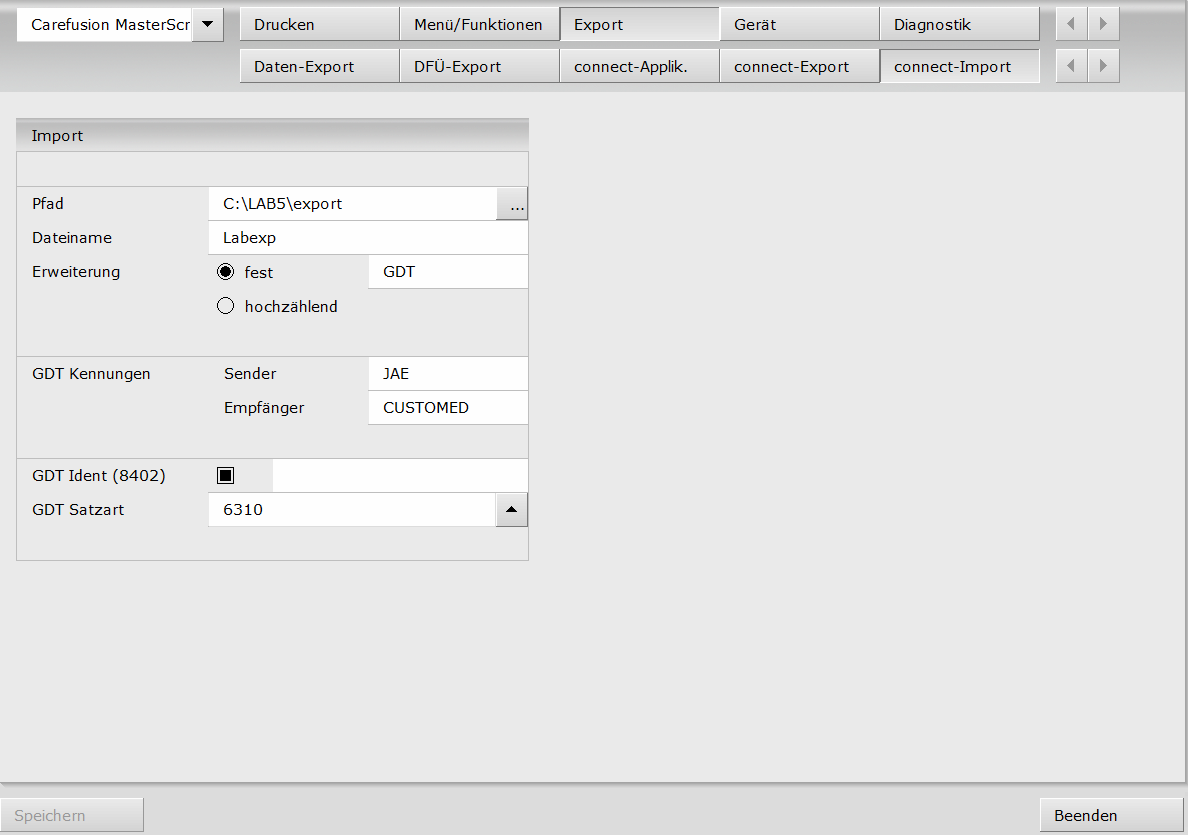

connect-Import, Setting for the Transfer from carefusion to custo diagnostic
Workflow:
available a Patient (1) with Parameter "Gender" "Patient ID" "Height" "Weight", start connect Produkt Carefusion(2) and click start (3)

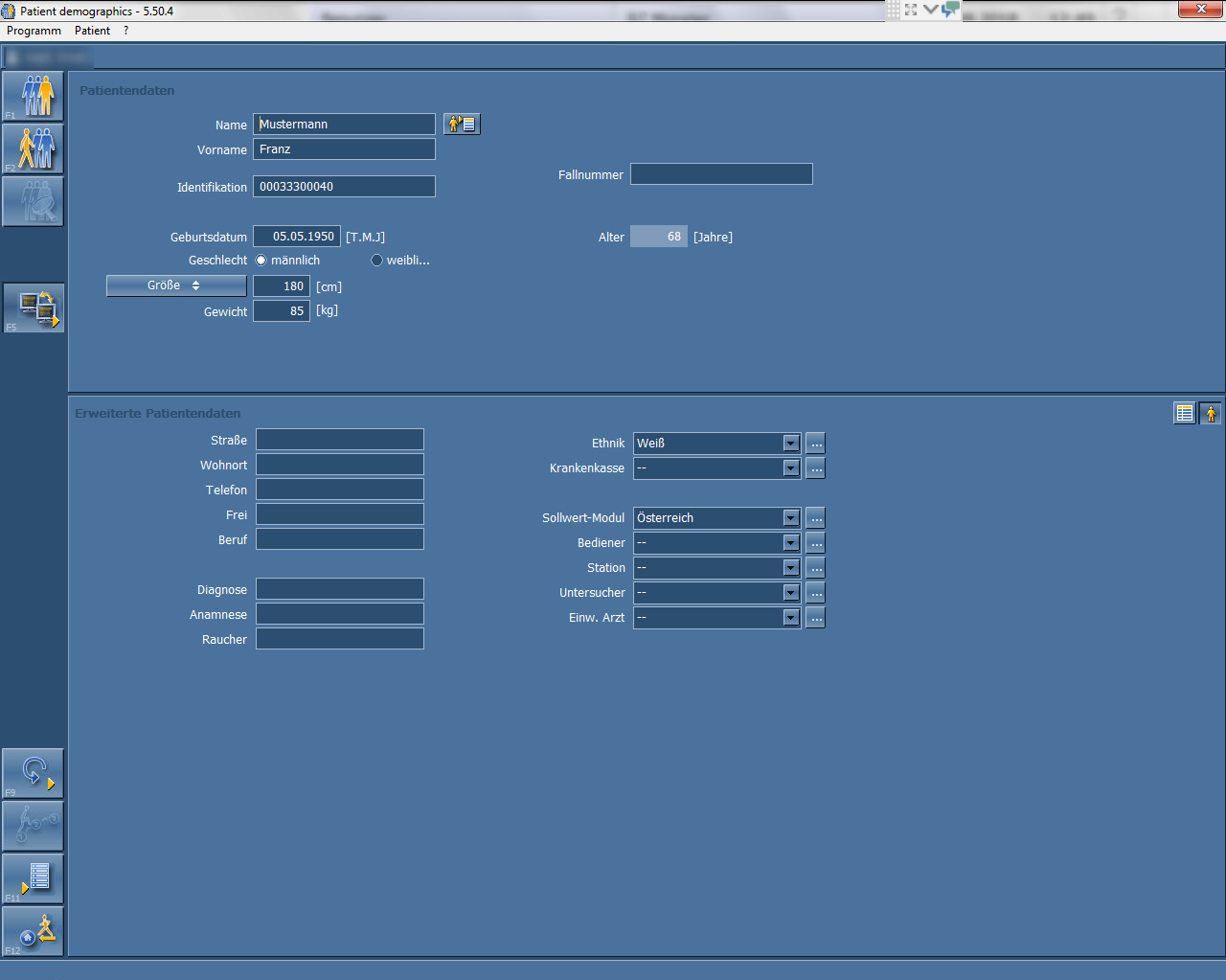

the patient mask of carefusion will be started automatically
